Temperature Range

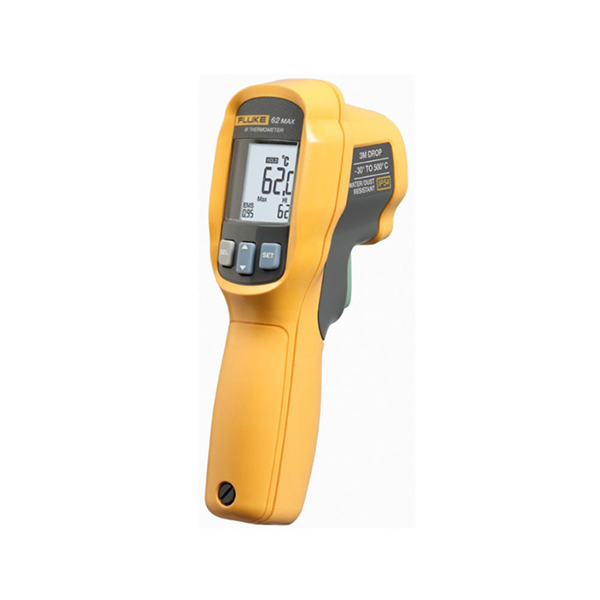

Fluke 62 MAX     -30 °C to 500 °C (-22 °F to 932 °F)

Fluke 62+ MAX   -30 °C to 650 °C (-22 °F to 1202 °F)

Accuracy
Fluke 62 MAX    ±1.5 °C or ±1.5% of reading, whichever is greater

                          -10 °C to 0 °C: ±2.0

                         -30 °C to -10 °C: ±3.0

Fluke 62+ MAX   ±1.0 °C or ±1.0% of reading, whichever is greater

                         -10 °C to 0 °C: ±2.0

                         -30 °C to -10 °C: ±3.0

Response Time (95%)
Fluke 62 MAX  <500 ms (95% of reading)

Fluke 62+ MAX  <300 ms (95% of reading)

Spectral Response  8 to 14 microns

Emissivity  0.10 to 1.00

Optical Resolution
Fluke 62 MAX  10:1 (calculated at 90% energy)

Fluke 62+ MAX  12:1 (calculated at 90% energy)

Display Resolution
0.1 °C (0.2 °F)

Repeatability of Readings
Fluke 62 MAX  ±0.8% of reading or <±1.0 °C (2 °F), whichever is greater

Fluke 62+ MAX  ±0.5% of reading or <±0.5 °C (1 °F), whichever is greater

Power
AA battery

Battery Life
Fluke 62 MAX  10 hours with laser and backlight on

Fluke 62+ MAX  8 hours with laser and backlight on

Physical Specifications
Weight                             :    255 g (8.99 oz)

 Size                                 :   (175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches

Operating Temperature      :   0 °C to 50 °C (32 °F to 122 °F)

 Storage Temperature :   -20 °C to 60 °C (-4 °F to 140 °F), (without battery)

Operating Humidity            :  10 % to 90 % RH non-condensing at 30 °C (86 °F)

 Operating Altitude             :   2000 meters above mean sea level

Storage Altitude                 :   12,000 meters above mean sea level

IP Rating                           :   IP 54 per IEC 60529

Drop Test                          :   3 meters

Vibration and Shock            :   IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms

EMC                                  :   EN 61326-1:2006 EN 61326-2:2006

Compliance  EN/IEC 61010-1: 2001

Laser Safety  FDA and EN 60825-1 Class II
